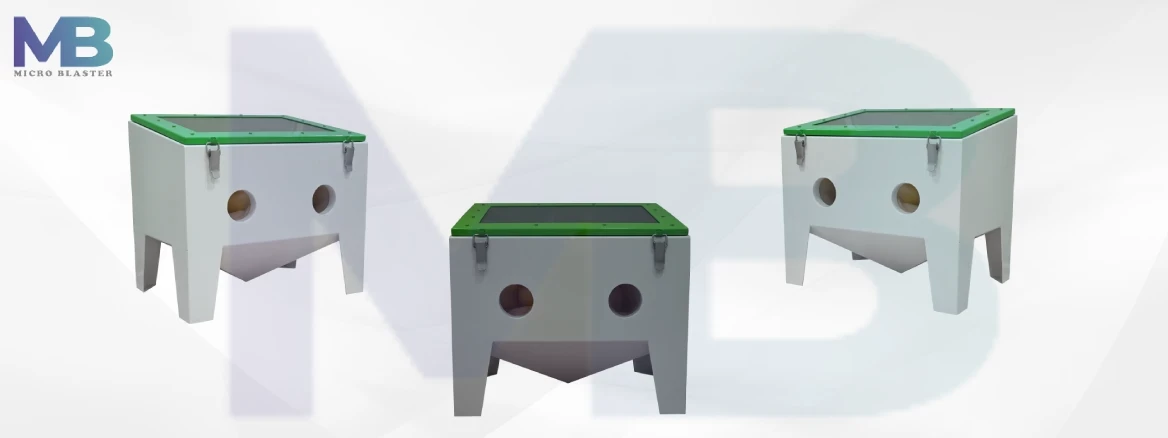

Bench Top Sand Blasting Cabinet
Products Bench Top Sand Blasting Cabinet
Bench Top Sand Blasting Cabinet
Bench Top Sand Blasting Cabinet

Bench Top Sand Blasting Cabinet

Send Enquiry for Bench Top Sand Blasting Cabinet

Specifications of Bench Top Sand Blasting Cabinet

Working chamber(mm) (l)600x(w)600x(h)600
Door opening(mm) (w)500x(h)500
Overall dimension (mm) (l)1500x(w)800x(h)1660
Usage Surface Cleaning and sand blasting
Cleaning rate 4-7 sqr. mtr/ hr
Compressed air required(cfm) 17
Nozzle (mm) 5/6
Color As per client requirement
Delivery Time 9-10 Days
Production Capacity 4-5
Packaging Details Polly Pack With Bubble Packing

Application of Bench Top Sand Blasting Cabinet

  • Damaged paint and coating layers, as well as rust, corrosion, grease, dirt, adhesives, and sealants, are all removed in order to
  • Recoat or repair damaged surfaces.
  • Application of coatings and paint.
  • Bonding/Sealant Application of Adhesive.
  • Forges and Foundries
  • For bowls, mugs, windows, and other decorative glass products, use stencils or masks, frosted or patterned glass.
  • Before welding, brazing, and soldering, surfaces are cleaned and solid union formation is ensured using a bench top sand blaster cabinet.

Bench Top Sand Blaster Cabinet

The Bench Top Sand Blasting Cabinet makes it easy to remove paint, rust, and other debris from small parts. The fully encircle design of this Bench Top Sand Blasting Cabinet keeps all abrasive media safely contained inside. The side door opening allows the loading of bigger workpieces. Large 16-1/2 in. the high work area is ideal for working with larger pieces. Includes abrasive gun with ceramic nozzles, hose and 12 in. long rubber gloves. Dust-collection-ready. Requires 1 HP or larger compressor. 3/8 in. the supply hose is sold separately.
This Benchtop Blast Cabinet has a 19″ wide x 10-3/4″ tall window for good visibility. Include in blasting gun with ceramic tips, built-in fluorescent lamp, and sealed glove ports. The air pressure requirement is 100 PSI. Overall size is 27-1/2″ wide x 24″ high x 22-1/2″ deep. Weighs approximately 56 lbs.

There are many sandblast guns that are well capable of handling large objects, but what about small, yet complex objects? Sand Blasting Cabinet is a comprehensive machine that takes care of small objects for you.
With this unit, you’ll be cleaning the object inside a secure compartment. The machine is 23 X 20 X 19 inches in size. Thus it is compact enough to fit in a confined space, but enough for most small equipment and hand tools.
The window at the top is made of glass but protected with removable plastic film. The combination can handle high-speed abrasives coming towards it. The glass is 19 X 16 inches in dimension, so you can see all the angles easily. There are tight seals around the glass, and there is no chance of leaking abrasive.

Features of Bench Top Sand Blasting Cabinet:

  • Constructed Of 18 Gauge Steel
  • Proudly manufactured by the expert staff here in the USA
  • Doesn’t leak & provides the user with a great work experience
  • Oversize Access Ports
  • Provide flexible access to the blast system
  • 18″ Rubber Gloves
  • Large & flexible so the complete work area inside the machine is accessible externally lifting the lid.
  • Foot Pedal Operated
  • Leaves both hands free to work in the cabinet
  • 1/8″ inside-diameter blast system
  • Large Acrylic Window
  • 12-1/2 inch by 8-1/2 inch viewport makes detail work easy to see
  • Dust Collector Required (Not Included)
  • 2-1/4″ opening works with many dust collection systems
  • 12 Inch High By 19 Inch Wide By 18 Inch Deep Work Area.
  • Lots of room for Autopart, craft & art projects, etc.
  • Designed For Bench top Use
  • Delivers big power in a tiny space; 3.6 CFM at 50 PSI
  • Fits in compact spaces: 28 inch (height) x 20 inch (width) x 18 inch (d); uses 115V power
