Vacuum Blasting Machine
Products Vacuum Blasting Machine
Vacuum Blasting Machine
Vacuum Blasting Machine

Vacuum Blasting Machine

Send Enquiry for Vacuum Blasting Machine

Specifications of Vacuum Blasting Machine

Blasting capacity 3-5 mtr\hr with 6mm nozzle
overall dimensions 800mm X 2000mm X 2200 mm
Grade Automatic/ mannual/ semi automatic
compressed air required 90 CFM / min at 6.33 sq mtr/hr
Type of nozzle required Tungsten carbide
Principle Pressure type
Type of dust collector Fabric bag dust collector /Reverse pulse jet pleated filter type dust collector.
cleaning of dust bags Motorized shaking\ pulse jet air
Color As per client requirement
Delivery Time 15-20 Days
Production Capacity 4
Packaging Details Polly Pack With Bubble Packing

Application of Vacuum Blasting Machine

  • On difficult project locations, use steel shot or garnet as an abrasive while vacuum blasting.
  • Infrastructure, such as tanks and bridges, needs to be contained.
  • Responsibilities necessitating the use of recycled abrasive materials.
  • Supportive of the environment
  • The procedures are clean and devoid of contamination; they are collected in plastic bags for safe disposal.
  • By adopting closed-circuit blasting, abrasive material usage costs are decreased.

Vacuum Sand Blasting Machine

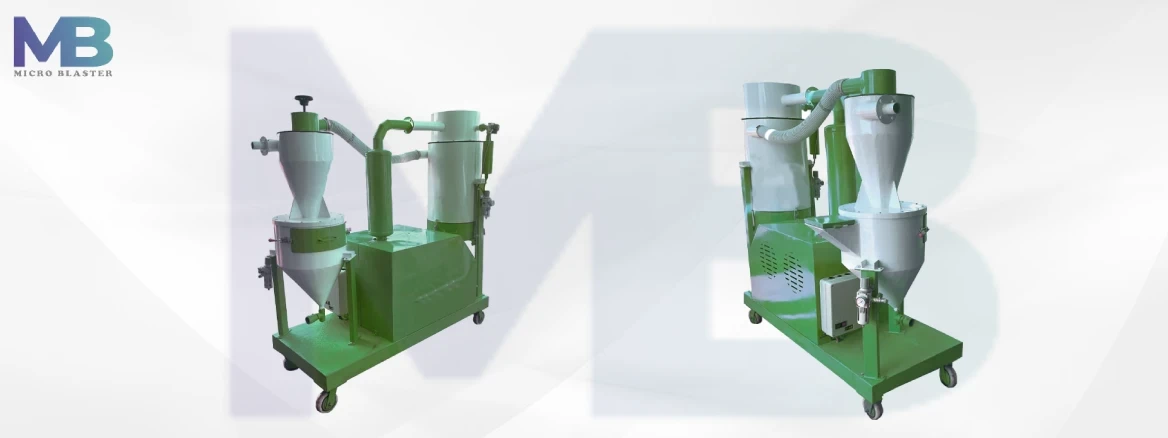

Vacuum blasting machine is suitable for different purposes, applications for surface preparation before coating, painting and needs only one man to operate thus it has an easy operating principle. There are various blasters based on pressure vessels in combination with compressed air filters and pressure regulators that provide sufficient velocity for blasting operation in a dust-free environment. Abrasive media is automatically and instantly recovered for reuse. No flying dust & abrasive material is there in air to contaminate the surrounding.

The process is safe and dust-free thus other production processes can be carried out simultaneously close to the blasting operation.

A special valve on the pressure vessel allows working with a blasting pressure as low as 1 bar and as high as 7 bars with the same machine. The vacuum blasting technique can be used on delicate blasting jobs where blasting at low pressures is a must. A vacuum blasting machine comes with a special lightweight blaster head, blaster, and vacuum hose/pipe assembly, as well as a set of brushes to treat flat surfaces as it needs to move from one site to another for its easy operation. The very special fibers are used in brushes to provide the best performance and economy.

Powerful benefits of Vacuum blasting machine:

  • 99.99% dust-free operation because of fully automated blasting & vacuum start/stop sequence provider.
  • Clean, Reliable, and abrasive material-free object surface after blasting.
  • Not time-loss by automatic filter cleaning and dust detonation is available.
  • Easy disposal of dust collected in plastic bags.
  • The unit can be relocated and/or transported easily as it is portable in nature.
  • A wide range of brushes are available to fit all (flat, cornered, radius) surfaces

Quality of Vacuum blasting machine includes:

  • The wear-resistant metering valve controls all abrasive material or media (also steel grits, fine aluminum oxide, etc.)
  • Have a separate main air valve which gives almost wear- and maintenance-free usage.
  • Have spray-painted, galvanized, and non-ferrous fittings.
  • Provide complete safety.

Environmentally friendly

  • No dust and contamination are there in the processes which are collected in plastic bags for safe disposal.
  • Closed-circuit blasting saves on abrasive media utilization costs.
Vacuum blasting machine Manufacturers in United States, Germany, Gulf & Australia

Micro Blaster is a company which Manufacturer, Supplier of Vacuum blasting machine in United States, Germany, Gulf & Australia. we also provide Sand blasting machine, Shot blasting machine, Grit blasting machine with the best quality and low price.
