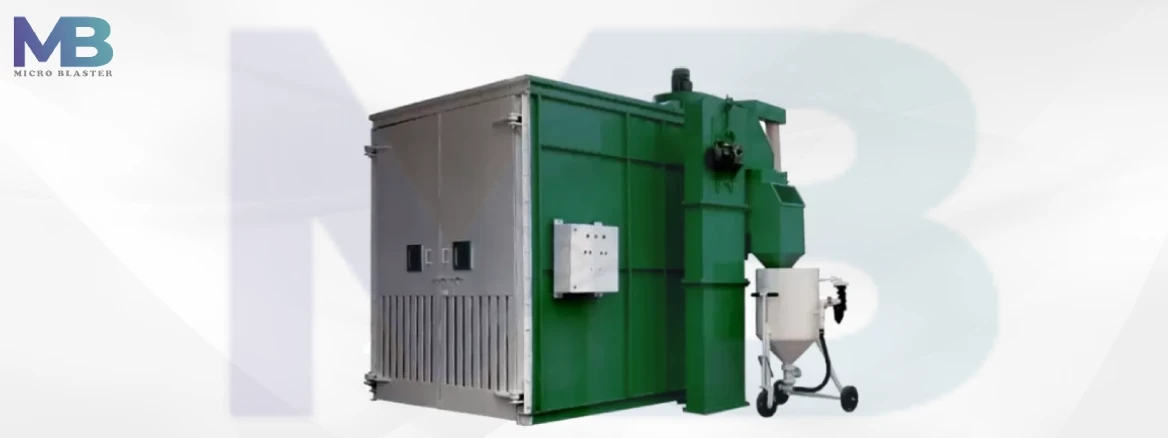

Sand Blasting Room

• Large steel members or fabrications, as well as commercial and military aircraft, are typically subjected to sandblasting.
• A railroad car's paint, rust, and corrosion are removed by sandblasting, as are construction tools.
• Transformers and other items that would be challenging or too big to fit in a hand cabinet are subjected to sandblasting.
• Leading businesses employ blast room technologies to clean surfaces before protecting them.
• By containing the abrasive being blasted at the workpiece and providing lighting and ventilation, the blast room protects the operator.
• The top-notch abrasives are then removed from the dust and transported to a recovery system so they may be put to use again.

We design and supply customized Sand blasting room with dust collectors and Exports low cost and best quality blast booth. We provide a Steel panel booth. Conventional steel paneled booths are easy to assemble. Rubber Inning in Sand blasting room protest for wear tear of blasting booth walls. Our largest Blastroom manufacturing factory, companies in United States, Germany, Gulf & Australia.

Sand Blasting Booth

During sand blasting, dust collectors are used for dust collecting in blast booth. portable sand blasting machine is placed outside of the Sandblasting booth and the operator can do blasting inside the enclosure by blasting hose. Portable sandblaster machine is automatically on-off by remote control and deadman handle in the Sand blasting room.

Recovery System is two types- mechanical and Vaccum, In vacuum recovery system compressed air is used for transfer grit and In automatic recovery system during grit, sandblasting abrasive falls down in screw conveyor and then media is transferred in bucket elevator, bucket elevator separate usable shot and non-usable by media separator, Usable shots fall down in sand blasting machine hopper and this process will continue.

Sand Blasting Chamber

During sand blasting machine operation operator wears safety wear which is protected from accelerated grits or sand.  Blast room can Steel Construction or Civil Constructed, in Civil constructed blast room door will be mild steel fabricated with air louvers, Air louvers enter required air as per dust collection system. Blast Room System door can be sliding and hinged type, we can supply according to customer demand and space available at customer workshop.

Dust Collection from blasting booth many types, most popular is Cyclone Type dust collector, Reverse Pulse jet Pleated filter, Motorized shaking type. We supply a dust collection system as per the customer’s requirement & specification of components. Sand blasting Chamber design is customized as per customer need its can fully automatic, Semi-automatic, or manually type.

Recovery System of Sand blasting Room

• Mechanical Recovery (Screw Conveyor and bucket elevator)
• Vacuum Recovery

Dust Collectors

• Cyclone Type Dust Collector
• Reverse Pulse Jet Pleated Filter Dust Collector
• Motorized Shaking Fabric Bag Dust Collector

The number of operators.

Sand Blasting Room

The size of the enclosure depends on

The size of the job.

  Adequate working space around the job.

Blast Room Enclosure Can Be Two Types:

Metallic Blast Room Construction: The metallic blast room is a fully sealed, dust-tight, all-steel structure, viable to be made in varying sizes. The panels are prefabricated for a simple bolt-together erection on site. Blast Room Enclosure is based on this design to meet the majority of customer’s requirements.

Blast Room System Includes Following Features:

Abrasive Blasting machine

Abrasive Recovery & Re-cycling System.

Dust Collectors

Job Handling System.

Wall Protection Rubber Lining.

Illumination.

Electric Control Panel.
