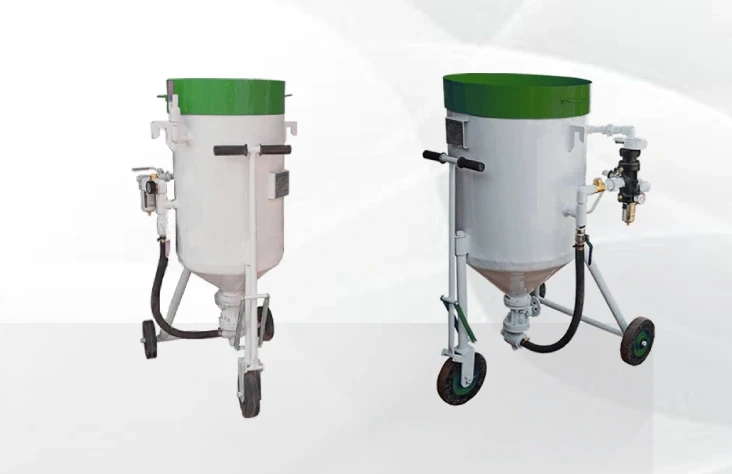

P7 500 & 500 R

Send Enquiry for P7 500 & 500 R

Specifications of P7 500 & 500 R

Storage Capacity	500 Kg
Recommended Abrasive Size	15 - 80 Mesh
Cleaning Rate	9 -12 Sq. Mtr./Hr
Machine Type	Portable (With or With-Out Remote)
Req. Compressed air (80 psi)	110 - 120 CFM
Grade	Manual
Nozzle	Tungsten / Boron Carbide
Nozzle Size	5 - 10 mm
Blast Hose Length (Mtr.)	7.5 Mtr.
Material	Mild Steel
Height	1370 mm
Diameter	615 mm
Gross Weight	180 Kg
Recommended Air Compressor HP	40 HP

Application of P7 500 & 500 R

The Grit Blaster P7 500 makes cleaning surfaces simple.
After painting, it adds a little more roughness to the surface, improving both its longevity and appearance.
We can improve the dependability and durability of the material by removing impurities such as corrosion, rust, dust, and other
contaminants with sandblasting.
The portable grit blasting machine is the most efficient method of cleaning a surface.
The grit blaster makes it simple to remove dust and other undesirable particles from surfaces.
The Grit Blaster P7 500 is used for the final polishing of the surfaces.

Portable grit blasting Machine P7 500 & 500 R or mobile grit blasting equipment has medium-sized blasting pot (500kg) thus also known as portable grit blasters & portable grit blasting units. It is having a moderate cleaning rate. This machine has two models, One is On/Off by Remote Control & Deadman Handle and the other is on / off manually. When Operators want to off the machine then it leaves the deadman handle, then depressurizes the portable grit blasting machine.

If the operator wants to on mobile Portable grit blasting equipment then he presses the deadman lever then Pressurization occurs into the portable grit blasting units. Leaver is located near the grit blasting nozzle so it can easily handle. It is also known as blasting pot, grit blasting hopper as it can easily move from one site to another.

Portable grit Blasting Machine P7 500 & 500 R medium capacity is low cost at maximum working time.

Specifications of Portable Grit Blasting Machine P7 500 :

Abrasive Tank Capacity (Metallic)	500 Kg
Abrasive Tank Capacity (Sand)	230 Kg
Volume	142 Ltrs.
Gritblasting Hose Length	7.5 mtrs.
Gritblasting Hose I.D.	25 mm
Grit blasting Nozzle Orifice (Tungsten Carbide)	6 / 8 mm

Overall Dimensions:

Height	1321 mm
Diameter	621 mm
Weight	192 Kg
Air Filter & Pressure Gauge fitted	1 No. Each.
Automatic Exhaust Valve fitted	1 No.
Abrasive Control through Pinch Valve fitted	1 No.
Approx. Cleaning Rate [Only for guidance]	9-12 Sq. Mtrs./Hr.
Compressed air required at 80 psi.	113 cfm
Recommended Abrasive Size	16 to 80 Mesh.

Portable Grit Blasting Machine P7 500 & 500R

Grit blasting machines are giving judicious substitutes to work since these machines district unit in a split second and effectively. You'll have the alternative to fundamentally put the hose at a little corner and clean it with satisfaction. Shot blasting is a reasonable decision to treat the surface, paint arranging, peening of metals, and conjointly sensible in layer cleaning occupations. in any case, since they use a nice measure of force going through absolutely extraordinary instrumentation and the metal surface of the release centers, the segments locale unit considered to ask broken extra time.

On account of constant blasting, cornmeal, and troublesome shots, the segments break and shot blasting transforms into a strategy for help. Contact Us for buying portable grit blasting machine P7 500 & 500R.
