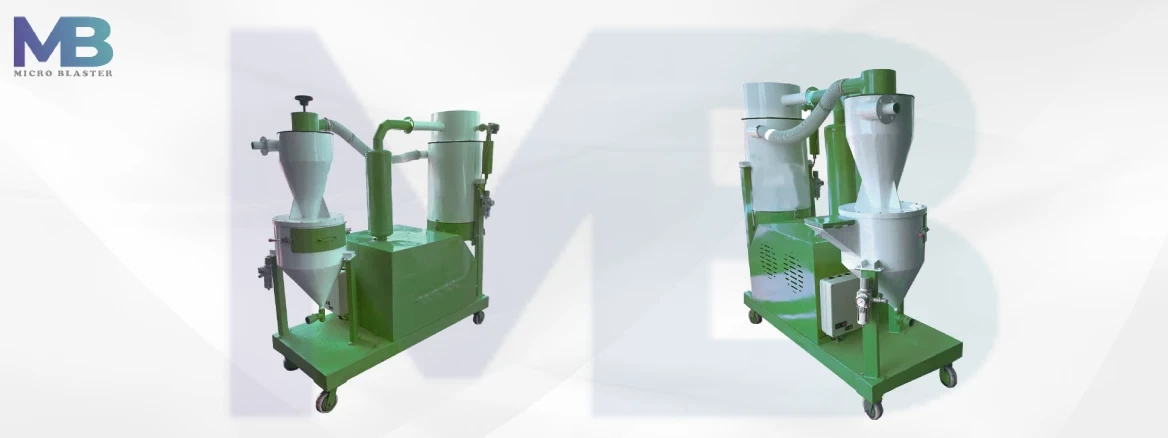

Vacuum Grit Blasting Machine
Products Vacuum Grit Blasting Machine
Vacuum Grit Blasting Machine
Vacuum Grit Blasting Machine

Vacuum Grit Blasting Machine

Send Enquiry for Vacuum Grit Blasting Machine

Specifications of Vacuum Grit Blasting Machine

Blasting capacity 3-5 mtr\hr
Nozzle Size 6mm
Overall dimensions 800mm X 2000mm X 2200 mm
Grade Manual, Semi Automatic, Automatic
Compressed air required 90 CFM / min at 6.33 sq mtr/hr
Type of nozzle Tungsten Carbide Lined
Principle Pressure type
Dust collector Reverse Pulse Jet Dust Collector
Cleaning of dust bags Motorized shaking\ pulse jet air
Material Mild Steel
Machine Type Suction & Pressure Type
Recovery System Vacuum Type
Vacuum Pump Motor 10 HP
Color As per client requirement
Delivery Time 15-20 Days
Production Capacity 5
Packaging Details Polly Pack With Bubble Packing

Application of Vacuum Grit Blasting Machine

  • On difficult work areas, use vacuum grit blasting with garnet or steel shot abrasive.
  • Containment using tanks, bridges, and infrastructure
  • Tasks requiring repurposed abrasive materials.
  • Environmental consciousness
  • Processes that are collected and placed in plastic bags for safe disposal are free of pollutants and dust.
  • Closed-circuit grit blasting reduces the cost of using an abrasive material.

Vacuum Grit Blasting Machines

Vacuum grit blasting machines are suitable for different purposes, applications for surface preparation before coating, painting and need only one man to operate thus it has an easy operating principle. There are various blasters based on pressure vessels in combination with compressed air filters and pressure regulators that provide sufficient velocity for blasting operation in a dust-free environment. Abrasive media is automatically and instantly recovered for reuse. No flying dust & abrasive material is there in the air to contaminate the surrounding.

Vacuum Grit Blaster Machine

The process is safe and dust-free thus other production processes can be carried out simultaneously close to the blasting operation. A special valve on the pressure vessel allows working with a pressure blasting cabinet as low as 1 bar and as high as 7 bars with the same machine.

vacuum grit blasting machine comes with a special lightweight blaster head, blaster, and vacuum hose/pipe assembly, as well as a set of brushes to treat flat surfaces as it needs to move from one site to another for its easy operation.

The grit blasting machine (vacuum) technique can be used on delicate blasting jobs where blasting at low pressures is a must. The very special fibers are used in brushes to provide the best performance and economy.

Powerful Benefits of Vacuum Grit Blasting Machine

  • 99.9999% dust-free operation because of fully automated blasting & vacuum start/stop sequence provider.
  • Abrasive material-free & clean object surface after blasting.
  • No time-loss within automatic filter cleaning and dust demobilization is available.
  • Easy disposal of dust collector in plastic bags.
  • The unit can be relocated and/or transported easily as it is portable in nature.
  • A wide range of brushes are available to fit all (flat, cornered, radius) surfaces

Environmentally Friendly Vacuum Grit Blaster

  • No dust and contamination are there in the processes which are collected in plastic bags for safe disposal.
  • Closed-circuit blasting saves on abrasive media utilization costs.

Quality of Vacuum Grit blasting Machine

  • Separate main air valve which gives almost wear and maintenance-free use.
  • Have spray-painted, galvanized, and non-ferrous fittings.
  • Provide complete safety.
Vacuum Grit blasting Machine Manufacturer

Blaster is the best grit blasting machine manufacturer in United States, Germany, Gulf & Australia. We also supply vacuum grit blasting machinevacuum blasting machinevacuum shot blasting machine & grit blasting cabinet. We provide service in countries such as United States, Germany, South Korea, Brazil, Mexico, United Kingdom, Gulf & Australia at best price with the latest model.

We are No.#1 grit blasting machine & equipment seller in United States, Germany, Gulf & Australia. Contact Us for latest price.
