P7 150

Send Enquiry for P7 150

Specifications of P7 150

Storage Capacity	150 Kg
Recommended Abrasive Size	30 -80 Mesh
Cleaning Rate	3 - 5 Sq. Mtr./Hr.
Machine Type	Portable (With or With-Out Remote)
Req. Compressed air (80 psi)	35 - 40 CFM
Grade	Manual
Nozzle	Tungsten / Boron Carbide
Nozzle size	5 / 6 mm
Blast Hose Length (Mtr.)	5 Mtr.
Material	Mild Steel
Height	1110 mm
Diameter	360 mm
Gross Weight	95 Kg
Recommended Air Compressor HP	15

Application of P7 150

With portable sandblasting equipment, any kind of paint, corrosion, or carbon buildup can be removed with ease.
Extends the life of dirty metal or ceramic surfaces such as rusty pipes, old metal objects, etc.
Simply smooth a rough area off or sand down a flat surface.
You may easily clean metal objects with hard-to-reach locations by utilizing a Portable Grit Blaster P7-150 to clean the troublesome corners.

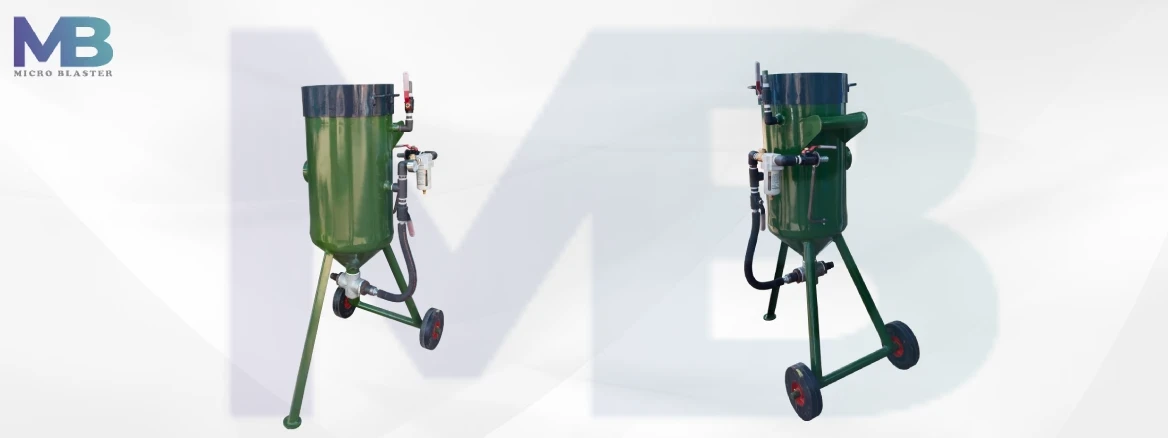

Mini portable grit blaster P7 150 or mini Grit Blaster is typically powered by a grit blasting air compressor and the mini grit blasting machine is named so because of its small-sized pot. Initially switch starts the air compressor. The air compressor provides a large volume of high-pressure air to sandblasting equipment. the grit blaster air compressor provides a large volume of high-pressure air that is controlled by the Solenoid valve or ball valve. Solenoid valves are used wherever fluid and airflow are to be controlled automatically.

After that Non-return valve is used for providing safety to the moisture separator. the ball valve is controlled by the operators manually (On/Off). Portable grit blasting Equipment is pressurized, tank filled with grit blasting grit, and used to allow an adjustable amount of grit blasting grit into the main blasting Pipe. Grit blaster nozzle is connected by two pipe one is connected through the air compressor directly and the second pipe is a mixture tube connected by blaster pot.

In blaster pot filled Abrasive material flow by air pressure and pushing on the substrate surface by the nozzle. and the second pipe is used in the nozzle for fast pushing the abrasive material on the substrate surface. Fully equipped mini Portable grit blaster P7 150 are often found mounted on wheels, offering high mobility and easy transport from site to site.

It is also known as portable grit blasting equipment. Grit blasting Nozzle is at the starting of grit blasting hose on Portable grit Blaster.

Mini portable grit blaster P7 150: Specifications

Abrasive Tank Capacity (Metallic)	150 kg
Abrasive Tank Capacity (Sand)	65 kg
Volume	42 Ltrs
Std. Blasting Hose Length	5 Mtrs
Blasting Hose I.D.	19 mm
GritBlasting Nozzle Orifice	5 or 6 mm

Grit Blasting Machine – Overall Dimensions :

Height	1111 mm
Diameter	361 mm
Weight	95 kg
Air Filter & Pressure Gauge fitted	1 No.Each
Automatic Exhaust Valve fitted	1 No.
Abrasive Control through Pinch Valve fitted	1 No.
Approx. Cleaning Rate [Only for guidance]	4-7 Sq. Mtrs./Hr.
Compressed air required at 80 psi.	60 cfm
Recommended Abrasive Size	25 to 80 Mesh.

Mini Portable Grit Blaster P7 150 Manufacturer

Mini Grit Blaster is typically powered by a grit blasting air compressor and the mini grit blasting machine is named so because of its small-sized pot. Blaster is the best Portable Grit Blasting Machine manufacturers in United States, Germany, Gulf & Australia and suppliers in United States. All kinds of grit blasting machine, shot blasting machine, Sand Blasting machine are manufactured and exported all over United States, Germany, Gulf & Australia by us. Contact Us today for the latest price of portable grit blaster P7 150 Machine.
