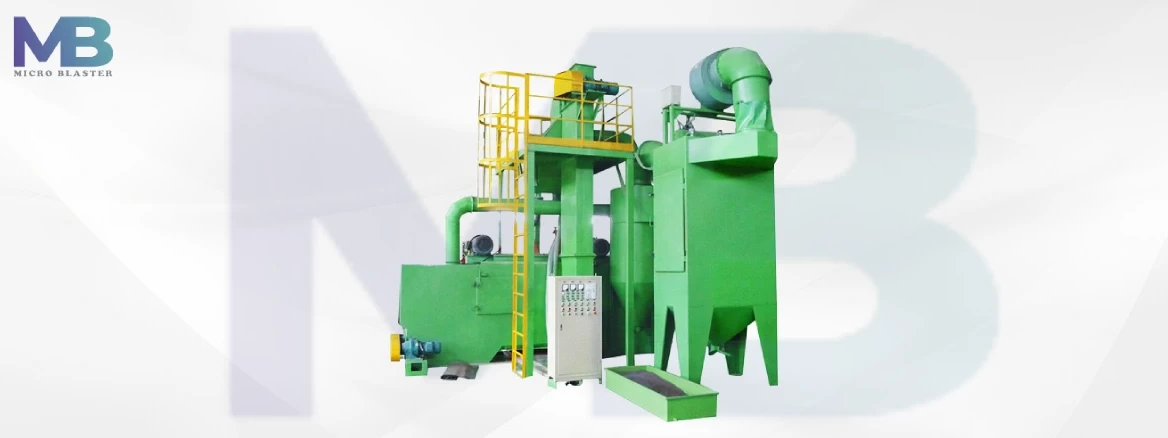

LPG & CNG Shot Blasting Machine

Send Enquiry for LPG & CNG Shot Blasting Machine

Specifications of LPG & CNG Shot Blasting Machine

Size of blast wheel	19 ½” X 2 ½”
No of blast wheel	2 -1
Power of blast wheel	15HP
Shot flow rate/Minute/wheel	150kg
Bucket elevator (size)	600mm X 200mm
Control panel	Centralised desk type panel
Principles	Centrifugal wheel blasting
Shot velocity (meter/second)	65 - 75
Types of dust collector	Fabric bag dust collector/ Reverse pulse jet pleated filter dust collector
Cleaning of dust bags	Motorized shaking\ pulse jet air
Color	As per client requirement (Grey)
Delivery Time	15-20 Days
Production Capacity	4
Packaging	Details Polly Pack With Bubble Packing

Application of LPG & CNG Shot Blasting Machine

LPG Cylinder shot blasting machine is made to continuously treat pipes and cylindrical parts' external surfaces (bottle containers, etc.)
The cylinders are given a uniform roughness during the blasting process, which improves paint adhesion and enhances visual appeal.

LPG & CNG Shot Blasting Machine is easy to operate with the smallest maintenance and the operator has to load and unload the cylinders on rotating diabolic rollers. The outside surface of the metallic LPG & CNG Gas Cylinder Shot Blasting Machine requires to be blast cleaned to remove rust, and corrosion and prepare the LPG & CNG cylinders surface for thermal coating and painting.

It is used to automatically clean or etch the surface of the steel cylinders by blasting abrasive media coming from blasting wheels. The steel LPG & CNG cylinders receive shot blasted as they pass through the blasting chamber. The cylinders also get rotated on the rollers as they pass through to the blasting chamber to get cleaning of the complete surface.

LPG & CNG Shot Blasting Machine Specification

Technical Specification	Model S-800DB	Model S-400DB
Size of Blast Wheel	19^1/2” x 2^1/2	19^1/2” x 2^1/2”
No. of Blast Wheel	2 Nos.	1 No.
Power of Blast Wheel	15 HP X 2 Nos.	15 HP X 1 No
Shot Flow Rate/Minute/wheel	150 kg.	150 Kg
Shot Velocity (Mtr./Second	65-75	65-75
Shots Consumption Rate	Approx. 0.13 Kg/hp/hr	Approx. 0.13 Kg/hp/hr

Dimension details of Machine

a) Cabinet

(i)Length:	2500mm	2000 mm
(ii) Width	1200 mm	1200 mm
(iii) Height	1600 mm	1600 mm

b) Overall Dimension of Machine with Dust Collector

(i)Length:	9000 mm	8000 mm
(ii) Width	4500 mm	4000 mm
(iii) Height	5000 mm	5000 mm

c) Dimension of Dust Collector

(i)Length:	1850 mm	1350 mm
(ii) Width	1350 mm	1350 mm
(iii) Height	3600 mm	3600 mm

d) Ground space required for machine

(i) Length	9000 mm	8000 mm
(ii) Width	4500 mm	4500 mm
Dust Collector Capacity	3000 cfm	2000 cfm
Motor HP for Dust Collector lower	7.5 H.P.	5 H.P.
Filter cloth area of Dust Collector	48 Sq. Mtr.	36 Sq. Mtr.
Conveyor System	Dia bola type	Dia bola type
Job Movement	Cylinders while moving forward also rotates.	Cylinders while moving forward also rotates.
Bucket Elevator (Size)	600mm x200mm	600mm x200mm
Bucket size : (i) Length :	125 mm	100 mm
(ii) Width :	125 mm	75 mm
(iii)Height :	90 mm	83 mm
Total power requirement	44.0 H.P	25.0 H.P
Control Panel	Centralized Desk type Panel	Centralized Desk type Panel
Noise Level	80-85 dB (A) at 3 Mtr. From machine	80-85 dB (A) at 3 Mtr. From machine
Cleaning Standard	SA 2.0 to SA 2.5	SA 2.0 to SA 2.5
Environmental Effect	Green Machine	Green Machine
Foundation	Pitless	Pitless

LPG CNG Shot Blasting Machine Features

Features of LPG & CNG Cylinder Shot Blasting Machine:-

Long working life
Low maintenance cost
High efficiency

LPG & CNG Shot Blasting Machine consists of some parts these are the following:

Shot Blasting Chamber
Blasting Wheels
Electrical Control System
Steel Cylinder Moving and Rotating System
Dust Removing System including pulse jet dust collector and centrifugal air fan
Shot Recycle System includes screw conveyor, and air wash separators, bucket elevator.

LPG & CNG Shot Blasting Machine Manufacturer

Blaster is the largest shot blasting machine (LPG Shot Blasting Machine & CNG Shot Blasting Machine) manufacturer in United States, Germany, Gulf & Australia. LPG & CNG Shot Blasting Machine supplies effective services and solutions for many manufacturing industries based on their demands.

We are also provide services in countries such as United States, Germany, South Korea, Brazil, Mexico, United Kingdom, Gulf & Australia at low cost, at best price with the best quality. Contact Us today for latest price of shot blasting machines.
