Portable Shot Blasting Machine

• Using a portable shot blasting machine, surfaces can be cleaned in preparation for coating and metallization.
• After painting, a portable shot blasting machine with aluminum oxide adds a slight amount of roughness to the surface, enhancing its strength and beauty.
• We can improve the material's dependability and hardness by shot blasting it.
• Removing unwanted dust from surfaces is made more accessible by a portable shot blasting machine.
• In the industry of metal and steel, the finishing touch is provided by glass bead abrasive media using the portable shot blasting machine.

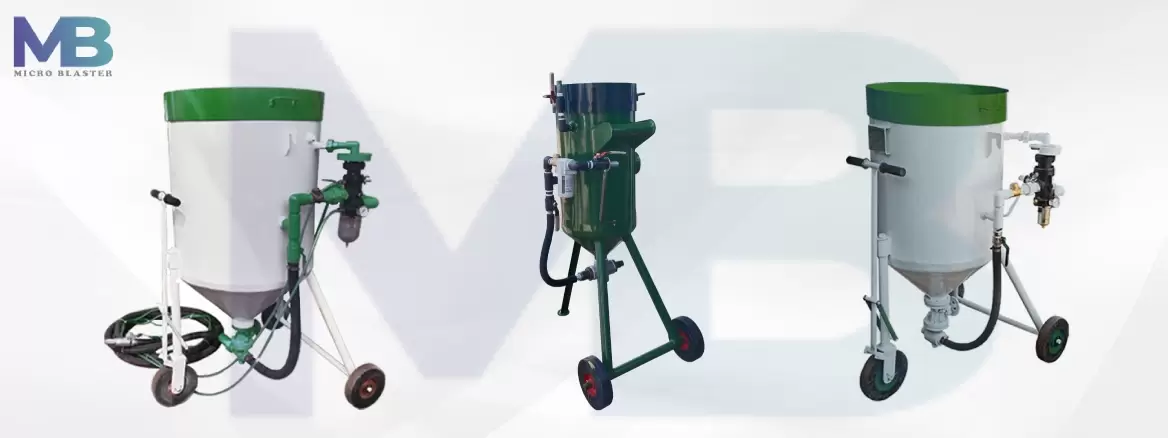

A portable shot blasting machine is a blasting machine that can be movable from one place to another easily. A portable shot blasting machine uses compressed air and high velocity moving a stream of abrasive media against a surface under very high pressure to smooth a rough surface, roughen a smooth surface and remove the loose particles from the metal surface.

A Portable Shot Blasting Machines is one of the most effective methods for shaping, cleaning, and smoothening a surface and removing all foreign material. It can be either stationary or portable. Shot Blasting is done in a shot blasting room, whereas the Portable Shot Blasting Machine can easily sandblast anything in the open area and sites. This is also referred to as a sand blasting hopper.

In the shot blasting machine steel grit and steel shots used to be the most commonly used abrasive media, but since lung illness makes happens by extended inhalation of the very fine dust created by shot blasting grit, other materials are now used in their place. For avoiding such major diseases we can use safety equipment such as air blaster helmets, air conditioners, air breathers, operators’ suits, hand gloves, gumboots, etc.

Portable Shot Blasting Machine Specifications

Portable Shot Blasting Machine Working

The steps of the Portable Blasting Machine to start is:

• First, choose the right abrasive media according to the surface of the job.
• Load Media in the pressure pot through a wire mesh because wire mesh refines the media and removes big particles of abrasive. If we don’t use wire mesh and load media directly into the pressure pot then the big particle might get stuck in the blasting hose and can create a big problem in the blasting machine.
• Then we start the air compressor and open the first ball valve for releasing the air into the Air Filter.
• Compressed air is filtered through the air filter and into the remote.
• After leaving the remote, the compressed air splits into two parts and goes into the pressure pot and the mixing tube, through the T connector.
• Another ball valve is installed between the mixing tube and the T connector, through which we can control the flow of air in the mixing tube and pinch valve.
• The dead manhandle and remote and connected through an air breaded hose for releasing air and there is a hole on the dead man handle, when closed, the mushroom valve in the pressure pot rise, and the pressure in the pressure pot increases, which causes downward pressure on the abrasive media.
• Blasting starts when all these steps are done correctly. When the blasting is complete, the dead manhandle hole is opened, so that all the pressure that was in the pressure pot is released from the holes which are under the remote.

Benefits of Portable Shot Blasting Machine

• Helps to detect surface defects
• Blast pattern accuracy is high
• Boosts the endurance of future coatings
• It has a good lifespan
