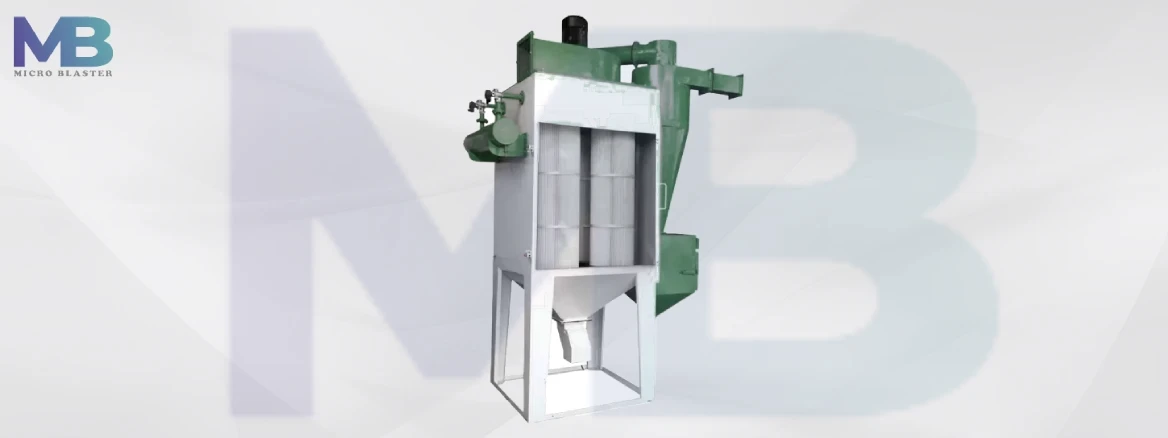

Reverse Pulse Jet Pleated Filter

Send Enquiry for Reverse Pulse Jet Pleated Filter

Specifications of Reverse Pulse Jet Pleated Filter

Material	Mild Steel
Filter Bag	Pleated filter bag
No of Bags	02 - 20 Nos. (according to req.)
Motor Power	3 - 10 H.P.
Fan Capacity	500 - 1500 CFM
Filter Cleaning	Compressed Air with Solenoid Valve
Dust Collector Type	Automatic / Semi Automatic
Packaging	Bubble Wrapping / Box
Transport	Land / Sea / Air
Usage	Collect Fine Dust During Sand Blasting & Coating / Mentalizations

Application of Reverse Pulse Jet Pleated Filter

Sand blasting machines can run continuously while the dust collector is being cleaned by reverse pulse jet dust collectors.
By improving capacity, reducing pollutants, consuming less electricity, and integrating numerous systems, enhances operations.
Pleated filters last longer than cloth bags and may be cleaned with less compressed air.
Because pleated filters are more effective and require less maintenance, they are frequently utilized in the manufacturing sector.

Reverse Pulse Jet Pleated Filter Dust Collector is a system of dust collector which is generally utilized in industries or factories. A high-pressure blasting of air is done to eliminate dust from the Pleated Filter bag dust collector. The blasting air enters the top of the Pleated Filter bag tube, temporarily stopping the flow of dirty air. The immediate collapse of air causes a wave of expansion to travel down the pleated filter bag. The flexing of the bag shatters and releases or breaks the dust block present over the pleated filter. The airburst is approximately 0.1 second and it takes about 0.4999 seconds for the wave to travel down the length of the filter bag. Due to its very fast release, the blast of air makes not interfere with the contaminated gas flow. Hence, Reverse Pulse Jet Pleated Filter Dust Collector can work continuously and are not normally compartmentalized. The blast of compressed air needs to be powerful enough to assure that the wave will travel the entire length of the filter bag and break the dust cake. The efficiency of the cleaning system permits the unit to should a much higher gas than shaking and reverse air bag filters.

The cleaning system consists of a sequential time controller. This sequential timer controls the solenoid valves. This compressed-air momentary enters or pulse of high-pressure compressed air through the blowpipe into the filter tube. This pulse of air generates a reverse flow of air, which expands the filter cartridges to clean or remove the collected dust over the filter.

Specifications of Reverse Pulse Jet Pleated Filter

Airflow (m3/h or CFM)	1000-300000 m3/h
Material	Stainless steel
Country of Origin	Made in United States, Germany, Gulf & Australia
Design	Modular
Discharge pressure	0.1-0.6 Pa

The cleaning procedure occurs on a row-by-row basis therefore only some of the total filter air is interrupted or stopped for cleaning allowing continuous outgoing of purified air.

Features and Benefits

It is easy to operate and handle.
Easy to install &remove the pleated filter bag.
Low consumption of compressed air (for cleaning) is needed.
High filtering performance even for the finest dust particles.
Filter media is chosen as per the application of a dust collector.

Applications of Reverse Pulse Jet Pleated Filter

Used in Sand blasting machine
Thermal spray Booth
Powder Coating Booth
Pharmaceuticals
Shot blasting machine
Grit blasting machine
Cement
Powder & Coating
Metals & Minerals
Chemicals
Steel & Power

Reverse Pulse Jet Pleated Filter Manufacturer in United States, Germany, Gulf & Australia

We are the Manufacturer, Supplier & Exporter of Sand Blasting Machine, Shot Blasting Machine, Grit Blasting Machine, Sand Blasting Cabinet, Bench Top Sand Blasting Cabinet, Suction Blasting Cabinet, Shot Blasting Cabinet, Sand Blasting Nozzles, thermal Spray gun, Metalizing gun, arc spray gun, flame spray gun, Zinc spray gun, etc in United States, Germany, Gulf & Australia at a low price for sale.
