AS P7 150
Specifications of AS P7 150
| Abrasive Tank Capacity | 150 Kg |
| Machine Type | Sand Blasting Hopper |
| Grade | Manual |
| Approx. Cleaning Rate [Only for guidance] | 4-8 Sq. Mtrs./Hr. |
| Compressed air required at 80 psi. | 61 cfm |
| Recommended Abrasive Size | 25 to 80 Mesh |
| Std. blast hose length | 5 - 7mtrs |
| Color | As per client requirement |
| Delivery Time | 15-20 Days |
| Production Capacity | 4 |
| Packaging Details | Polly Pack With Bubble Packing |
Application of AS P7 150
- A portable sand blaster AS P7 150 can be used to quickly remove any kind of paint, corrosion, or carbon buildup.
- prolongs the life of metal products, corroded pipes, aged metal products, and any other metal or ceramic surface that requires cleaning.
- Just smooth out a bumpy surface or roughen up a smooth one.
- When compared to hiring a full-time employee to clean a surface, the cost is 95% cheaper.
- Metal objects with difficult-to-reach corners can simply have their challenging corners cleaned.

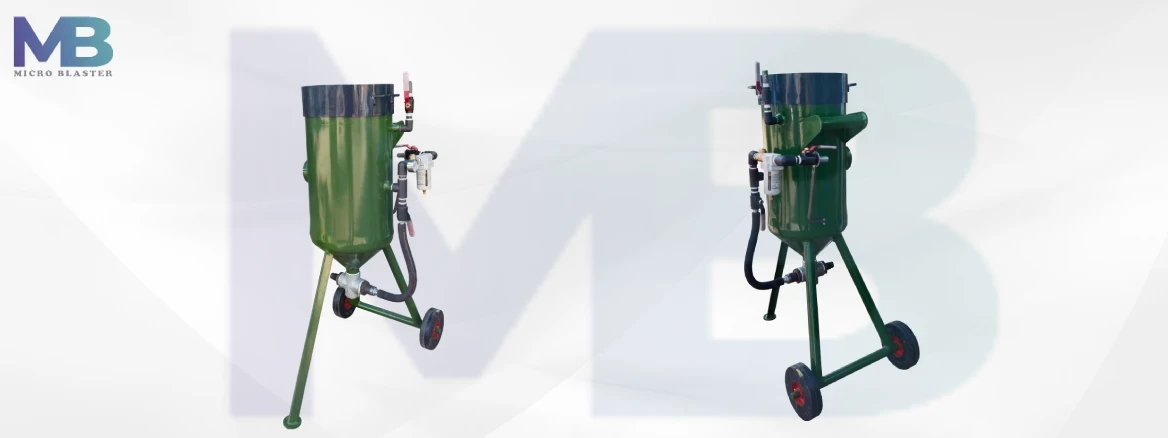

Portable Sand Blasting Machine AS P7 150 or mini Sand Blaster is typically powered by sandblasting air compressor and the mini Sandblasting machine is named so because of its small-sized pot. Initially, the switch starts the air compressor. The air compressor provides a large volume of high-pressure air to sandblasting equipment. the sandblaster air compressor provides a large volume of high-pressure air that is controlled by the Solenoid valve or ball valve. Solenoid valves are used wherever fluid and airflow are to be controlled automatically. After that Non-return valve is used for providing safety to the moisture separator. The ball valve is controlled by the operators manually (On/Off).
Sand blaster nozzle is connected by two pipes one is connected through the air compressor directly and the second pipe is a mixture tube connected by a blaster pot. Portable Sand blasting Equipment is pressurized, tank filled with sandblasting grit, and used to allow an adjustable amount of sand blasting grit into the main blasting Pipe. In blaster pot filled Abrasive media flow by air pressure and pushing on the substrate surface by the nozzle and the second pipe is used in the nozzle for fast pushing the abrasive material on the substrate surface.
Fully equipped Mini Portable Sand Blasting Machine AS P7 150 are often found mounted on wheels, providing mobility and easy transport from one site to another site. It is also known as portable sandblasting types of equipment. Sand blasting Nozzle is at the starting of sand blasting hose on Portable Sand Blaster.
Portable Sand Blasting Machine AS P7 150 Specifications
| Abrasive Tank Capacity (Metallic) | 150 Kg |
| Abrasive Tank Capacity (Sand) | 65 Kg |
| Volume | 42 Ltrs |
| Std. Blasting Hose Length | 5 Mtrs |
| Blasting Hose I.D. | 19 mm |
| Sand blasting Nozzle Orifice | 5-6 mm |
Overall Dimensions
| Height | 1111 mm |
| Diameter | 361 mm |
| Weight | 95 Kg |
| Air Filter & Pressure Gauge fitted | 1 No. Each. |
| Automatic Exhaust Valve fitted | 1 No. |
| Abrasive Control through Pinch Valve fitted | 1 No. |
| Approx. Cleaning Rate [Only for guidance] | 4-7 Sq. Mtrs./Hr. |
| Compressed air required at 80 psi. | 60 CFM |
| Recommended Abrasive Size | 25 to 80 Mesh. |
