What is Sand Blasting Hopper?

A blasting device that we can easily move from one location to another is a sand blasting hopper. This machine performs well and is very cost-effective. The material receives a better finish and a brand-new appearance thanks to the sand blasting machine. With the help of this machine, we can clean any type of surface impurity or corrosion, prepare the surface for painting, and apply paint. The Sand Blasting Hopper is used because it is lightweight and portable. It has three wheels so that you can easily move the machine from one location to another. Blasting is a process that improves the life and durability of any metal surface by removing corrosion, paint, burrs, impurities, and dust.

The specifications table of Sand Blasting Hopper:

United States, Germany, Gulf Countries & Australia uses a variety of blasting techniques; the two most popular blasting devices are the sand and shot blasting machine. In the open space on the surface, a sand blasting hopper is typically used. This equipment is used for grit blasting and is very affordable and simple to use for sand and shot blasting. This machine is preferred and highly suggested in a variety of industries and applications due to its portability. The Sand Blasting Hopper Price offered by us is the lowest in United States, Germany, Gulf Countries & Australia.

We produce sand blasting hoppers in sizes 150 kg, 300 kg, 500 kg, and 1000 kg. The pressure pot's metallic capacity is represented by these precise sizes. We offer an air compressor and dust collector based on these sizes. There are two types of sand blasting hoppers: one has a remote and the other doesn't. Along with the wet hated tool for wet blasting, we also produce a Sand Blasting Hopper.

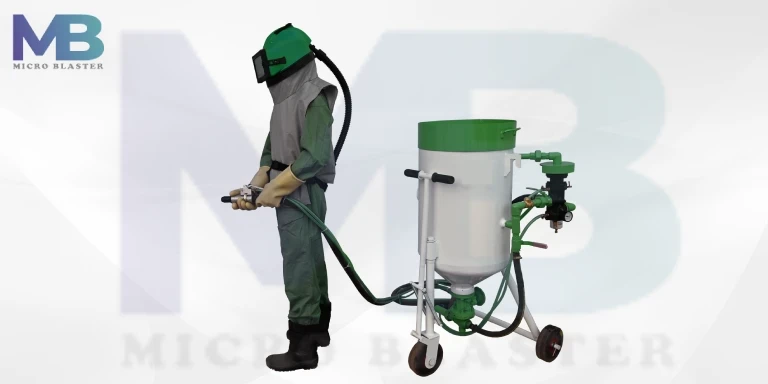

Portable Sand Blasting Hopper

The Portable Sand Blasting  Hopper is an impactful finishing technique for glass, metal, plastic, ceramics, and stone. The portable sand blasting equipment is safe and efficient, and it can be used with a variety of abrasive media. Descaling, peening, deburring, flashing, polishing, cleaning, and stress relief are all functions of portable sand blasting hopper. The portable sand blasting hopper operates on the pressure Sand blasting principle and is equipped with a blast generator. When a machine is not in use and the blast storage tank is not pressurised, the abrasives have accumulated on the top of the sandblasting hopper.

A vibrating sieve is provided at the top blasting hopper to sieve the abrasive filled on the top of the sand blasting hopper. When the mushroom valve is closed, the abrasive is transferred to the blasting hopper's blasting storage tank for blasting from the sand blasting hopper. When the mushroom valve opens, compressed air is turned on and the abrasive storage tank is pressurized, allowing the abrasive to fall freely into the mixing tube. Compressed air transports the abrasive from the mixing tube to the sand blasting nozzle. The remote control of sandblasting equipment ON/OFF is in the hands of the operator and does not require an electrical connection.

Sand Blasting Hopper Manufacturer in United States, Germany, Gulf Countries & Australia

We offer powerful and top-notch blasting equipment and abrasive media as a leading Sand Blasting Hopper Manufacturer in United States, Germany, Gulf Countries & Australia. We have a skilled engineering team that can design and construct dependable blasting machines and their equipment in accordance with the needs and specifications of the customer. We first choose a sturdy and long-lasting metal, such as a sheet of mild steel, to build the Sand Blasting Hopper. By folding a rectangular sheet, we create the pressure cooker's tank. Next, we create the inner and outer hoppers. Arc welding is used to join all of these components from the inside and outside. To ensure that the pressure pot is sturdy and can comfortably withstand the pressure, we keep the thickness of all these components at 6 mm.

After the pressure pot is constructed, we test it with a hydraulic pump set at 20 Kg/cm2 to check for leaks. We grind, polish, and paint the pressure pot's components after they have all been assembled. Wire mesh was placed on the inner hopper to separate the large abrasive media particles. The air compressor is then supplied in accordance with the blasting machine. Through an air hose, whose thickness we estimate to be 3/4 inch, we connect the air compressor to the pressure pot. We first install a ball valve, then an air filter with a pressure gauge, and finally connect the air compressor to the pressure pot. The pressure builds as we look at the remote, which causes it to release its internal pressure.

The remote has an air connection at the bottom, which we connect to the blasting worker's safety suite so that the worker can breathe fresh air. Additionally, the heat produced during blasting is reduced. The air is then split in half by a T connector that follows. The first portion is placed in the pressure cooker, and the second is placed in the mixing tube. We place a mushroom ball above the GI nipple inside the pressure cooker. We use a rubber pinch valve in the mixing tube to regulate the flow of the abrasive media. Then, we attach a sand blasting hose to the mixing tube, which has a 3/4-inch thickness. Through the nozzle holder, we fasten a nozzle to the end of the sandblasting hose. Because of their extreme hardness and ability to withstand prolonged blasting, tungsten carbide and boron carbide blasting nozzles are used. This is the manufacturing process of a portable sand blasting hopper.
